Z RACKS
Z VERSIONS – SAVE SPACE, KEEP QUALITY

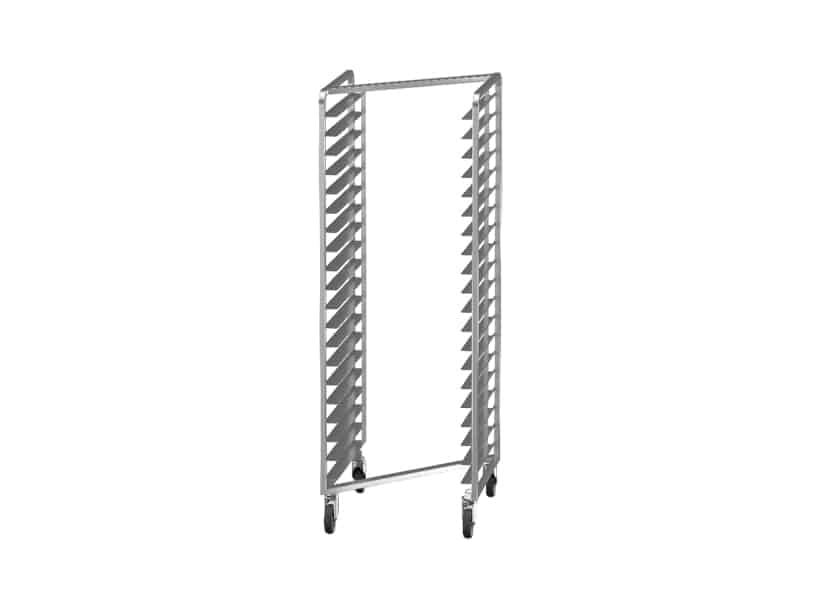

Our premium model for Z-racks: when robust construction meets space efficiency. The Z PLUS version was developed for the highest demands in bakeries that require both space optimization and maximum load capacity. The design is based on our proven oven rack technology – enhanced with a specially reinforced undercarriage featuring an extremely robust Z-brace, reinforced profiles and inset wheels for optimized running and hygienic design.
Applications & benefits
• Up to 66% space savings thanks to nestable Z-position
• Extremely durable – ideal for heavy dough pieces, tray stacks & freezer applications
• Inset wheels – no snagging hazard, easier to clean
• Extra-strong angle profiles – permanently dimensionally stable
• Customizable to your production environment
• Made in Germany – durable, low-maintenance, well-engineered
Technical details (Z PLUS model)
• Frame: 5 mm solid-steel construction
• Brace geometry: Z-brace for space-saving nesting
• Tube profile: 2 mm wall thickness – significantly more robust than standard profiles
• Run layout: per your specification (e.g. 600 × 800 mm or 600 × 400 mm)
• Wheels: inset, suitable for heat & freezer use
• Height & number of runs: variable (e.g. 18 or 20 runs)
Suitable for
• Narrow production aisles & storage zones
• High-throughput bakeries with limited space
• Freezer lines/baking lines & automated logistics
• Store concepts with interim storage
Why Z PLUS from Anneliese?
• Because stability is our standard, not an option
• Because every centimeter in your production counts
• Because we know from experience what really matters in practice
➜ Configure now
📞 Call us. We’re happy to advise you personally: +49 2403 7001 0
Z VERSIONS – SAVE SPACE, KEEP QUALITY
The innovative solution for particularly space-sensitive areas
Z-racks are seen as a space-saving alternative to classic oven racks – but previous models often failed to convince. Anneliese took this as an incentive to completely re-engineer the Z version. Today it offers the uncompromising quality of an oven rack – plus significant space efficiency.
Up to 66% space savings thanks to the unique Z brace – ideal for narrow production aisles
High-stability chassis (5 mm material thickness) – robust, dimensionally stable and warp-free
Stronger tube profiles (2 mm wall) – significantly more hard-wearing than common market solutions
Inset wheels – no snagging hazard, easy cleaning thanks to better access
Always in proven Anneliese quality – seamless, hygienic, durable
Please contact us. We would be pleased to assist you personally.
Technical highlights
• Z brace: enables easy nesting, space savings up to 66%
• Frame: 5 mm material thickness – high stability
• Tube construction: 2 mm wall thickness for long-term heavy loads
• Wheel mounting: inset wheels – easier access and more hygienic
• Compatibility: combinable with all oven & freezer rack variants
- TYour advantages at a glance
Innovation meets order quality – we take proven product families to the next level
Practical solution for tight spaces – perfect when floor space is limited
Full design freedom – without sacrificing stability or hygiene
Made in Germany – developed and manufactured in Eschweiler
CUSTOM APPLICATIONS
Our Z versions can be combined with almost all oven rack and freezer rack models – from standard designs to the robust premium “Z Plus” line. Simply choose your preferred base and benefit from the proven Anneliese quality – now more efficient than ever.
MATCHING CASTORS FOR YOUR TRANSPORT RACKS
Hard plastic wheel for rack trolleys
Robust duroplastic wheel with a hard tread surface. Low-noise, durable and low-maintenance in daily use. Ideal for smooth, solid floors.
Specifications: Wheel Ø 100 mm | Width 35 mm
Color: Black
Temperature range: -40 °C to +250 °C
Swivel castor: Stainless steel housing with hard plastic wheel for rack trolleys
Hard plastic wheel for rack trolleys
Swivel castor with corrosion-resistant stainless steel housing and maintenance-free Teflon bushing. The Teflon bushing ensures smooth, maintenance-free rolling.
Designed for hygienic use at high temperatures.
Specifications: Height 128 mm | Wheel Ø 100 mm | Width 35 mm
Color: Black
Temperature range: -40 °C to +250 °C
Mounting: Plate
Cast aluminum wheel
Swivel castor with corrosion-resistant stainless steel housing, precision bearing and cast aluminum wheel. Ideal for continuous use at high temperatures. The internal Teflon bushing ensures smooth, maintenance-free rolling.
Specifications: Wheel Ø 100 mm | Width 30 mm
Color: Grey | Red
Temperature range: -40 °C to +300 °C
Swivel castor: Stainless steel housing with cast aluminum wheel
Cast aluminum wheel
Swivel castor with corrosion-resistant stainless steel housing, precision bearing and cast aluminum wheel. Ideal for continuous use at high temperatures.
The internal Teflon bushing ensures smooth, maintenance-free rolling.
Specifications: Height 128 mm | Wheel Ø 100 mm | Width 30 mm
Color: Grey | Red
Temperature range: -40 °C to +300 °C
Mounting: Plate | Bolt hole
Silicone rubber wheel (Anneliese wheel)
Robust wheel with a heat-resistant and vibration-damping silicone rubber tread. Designed for low-noise, durable and smooth operation. Ideal for sensitive floor surfaces.
Specifications: Wheel Ø 100 mm | Width 35 mm
Color: Yellow
Temperature range: -30 °C to +250 °C
Swivel castor: Stainless steel housing with silicone rubber wheel
Silikongummirolle (Anneliese-Rolle)
Heat-resistant swivel castor with corrosion-resistant stainless steel housing and dry bearing bushing – ideal for smooth, low-vibration rolling. Maintenance-free thanks to dry bearing technology.
Specifications: Height 128 mm | Wheel Ø 100 mm | Width 35 mm
Color: Yellow
Temperature range: -30 °C to +250 °C
Mounting: Plate | Bolt hole
Freezer rack wheel / transport trolley wheel
Combination of a stable polypropylene wheel core and a soft, floor-friendly tread made of thermoplastic rubber. Quiet rolling performance at low temperatures.
Specifications: Wheel Ø 125 mm | Width 32 mm
Color: Grey
Temperature range: -20 °C to +60 °C
Swivel castor: Zinc-plated steel housing with freezer rack / transport trolley wheel
Freezer rack wheel / transport trolley wheel
Swivel castor with zinc-plated steel housing and a quiet-running rubber tread. Plain bearing design for low-maintenance use in freezer environments.
Specifications: Height 155 mm | Wheel Ø 125 mm | Width 32 mm
Color: Grey
Temperature range: -20 °C to +60 °C
Mounting: Bolt hole
